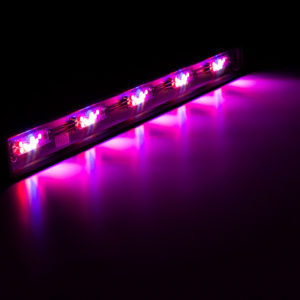

SCALAR is the first of a new horticultural exposure family specifically designed to expose challenging plants for long-lasting and efficient use. The light spectrum has been selected according to the latest scientific findings, thus enabling maximum yield.
The Cree LED’s are the most modern and brightest LEDs on the market in plant exposure and bring SCALAR to top light levels with low energy consumption. The LEDs are also optimally cooled by the black anodized aluminum housing, which ensures a long and reliable operation.
The high-quality housing offers flexible options for vertical and horizontal mounting. This allows optimal planning and exposure of any requirements.
Key features:
- Latest Cree LED technology
- Light spectrum optimized for plants
- Usable for all grow stages
- Homogeneous light distribution
- High efficient lighting
- High quality passive cooling
- IP 54
- Maintenance free
- Modular
- Many different possibilities to mount
- Mountable in any dimension
Developed, assembled and produced in AUSTRIA
| Technical Data | |
| Length | 1,000 mm (39.73”) |
| Width | 82 mm (3.23”) |
| Height | 55 mm (2.17”) |
| Weight | 3.6 kg (7.94 lb) |
| Typical power consumption | 122 W |
| Line input voltage range | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Line power factor | PF > 0.95 / 230 VAC PF > 0.98 / 115 VAC |
| Max. line input current | 1 A / 230 VAC – 1.85 A / 115VAC |
| Internal operating voltage | 24 Volt (SELV) |
| LED module protection class (electrical connection excluded) |
IP54 |
| Max. environ. temp. for operation | 5 – 40 °C |
| Max. rel. humidity for operation | < 90% |
| Light Data | |
| Emission wavelength range | 400 – 760 nm |
| PPFD* in 0.25 m (9.85”) distance | 345 µmol/m²s |
| PPFD* in 0.50 m (19.69”) distance | 160 µmol/m²s |
| PPFD* in 1.00 m (39.37”) distance | 56 µmol/m²s |
| System efficiency PPFD* in 0.25m (9.85”) | 2.83 µmol/m²s/W |

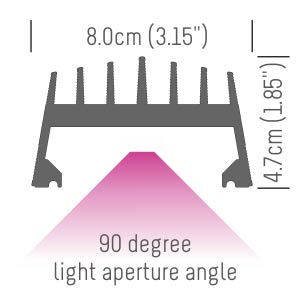

| Beam angle: | 90° |
